Pneumatic Switchpoint Drives

  • Description
  • Specifications

2 pneumatic drives for 9 V or  RC track.

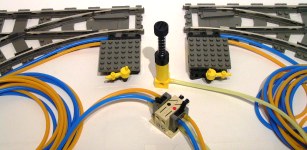

Very compact but powerful design with small pneumatic cylinders. Suitable for left or right switch points. No adjustments to the switchpoints needed. Can also be used with directly connected switchpoints. 2 pneumatic switches for independent operation. Several switch blocks can be coupled. Including 2 x 5 metre pneumatic hose for the switch points and 0.5 metre for the pump. Lever of the switchpoint (included with a switchpoint) is used to indicate the direction. 10 different coloured decals for the switches to do the same. Depicted switchpoints and yellow pneumatic pump not included. Pump is optional.



Type of track: RC, 9V
Dimensions (L x D x H): 8 x 5 x 2 cm / 3.2 x 2.0 x 0.8 inch (2x)
Number of Parts: 76
Includes: Building instruction, List of parts, Decals/stickers
Optional: Pneumatic hand pump
Type of instructions: Printed
Gross weight complete set: 275 gram / 9.7 ounce
Remarks: Including 2x5 metre pneumatic hose.
